What are the main components of a machine vision system?
Have you ever considered how automated equipment actually “sees” and makes decisions on a factory floor? This capability, which transforms manufacturing and quality control, relies on a sophisticated assembly of hardware and software working in concert.
While the industrial camera often receives the most attention, it is merely one part of a complete vision system. True functionality emerges only when seven essential components—lighting, lens, camera, cabling, interface peripherals, computing platforms, and software—are integrated seamlessly. Each element plays a distinct role in capturing, transferring, and processing visual data.
We guide organizations in understanding that these components must be carefully selected to create an orderly flow of information. From the initial light capture to final digital image analysis, every part contributes to the system’s overarching goal: enabling machines to make intelligent decisions based on visual input.
This guide will explore each component’s critical function and selection criteria, empowering you to build or optimize a vision solution for enhanced operational efficiency.
Key Takeaways
- A complete machine vision system integrates seven core components working together.
- The camera is a central element, but it cannot function effectively in isolation.
- Proper lighting and lens selection are critical for capturing high-quality images.
- Software and computing platforms are essential for analyzing visual data and enabling decisions.
- Careful component selection directly impacts system performance and reliability.
- These systems support critical industrial tasks like quality control and robotic guidance.
Introduction to Machine Vision Systems
Behind the precision of today’s automated manufacturing lies a sophisticated technology that gives machines sight. These integrated solutions combine specialized hardware and advanced software to interpret visual information from their environment.
Overview and Core Functionality
At the foundation of every machine vision system lies the image sensor, which captures light and converts it into electrical signals. The camera records reflected light from objects, with image quality depending heavily on proper illumination and light source selection.
These signals undergo sophisticated processing to extract meaningful data for quality control and measurement applications. The entire vision system transforms raw visual input into actionable intelligence that drives automated decision-making.
Importance in Modern Automation
Modern machine vision systems deliver consistent, high-speed analysis capabilities that far exceed human visual inspection. This technology enables manufacturers to achieve unprecedented levels of quality assurance and defect detection across diverse industrial applications.
From pharmaceutical inspection to automotive manufacturing, these systems provide the intelligence needed for automated inspection and real-time decision-making. The interdependent nature of system components requires careful design consideration, typically beginning with sensor selection that determines overall architecture.
We help organizations navigate this complexity, ensuring each component is properly selected and integrated to meet specific application requirements and deliver measurable business value.

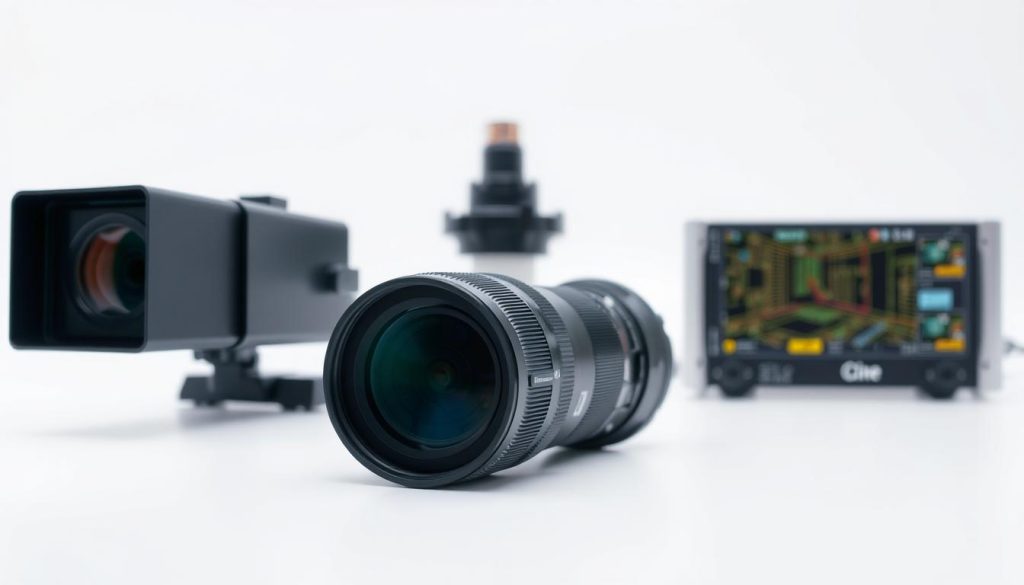

What are the main components of a machine vision system?
The operational intelligence of modern industrial automation hinges on a carefully orchestrated set of hardware and software elements. We guide clients in understanding that each part must be selected to facilitate an orderly flow of information.
This journey begins with light capture and concludes with digital image analysis and decision-making. A complete solution integrates seven essential components working in concert.
Lighting serves as the foundational element. Proper illumination ensures target objects are clearly visible, which is critical for high-quality image capture. Various light sources, like LEDs, are chosen based on application needs.
The lens acts as the optical interface, focusing reflected light onto the image sensor. Correct lens selection determines factors like magnification and field of view, directly impacting image clarity.
At the heart of the setup is the vision sensor or industrial camera. This device houses the sensor that converts light into electrical signals, forming the raw digital image data.
Cabling and interface peripherals provide the vital data transport infrastructure. They move the captured image data from the camera to the processing unit using various protocols for speed and reliability.
Computing platforms, from industrial PCs to embedded systems, supply the necessary processing power. They analyze large volumes of image data and execute complex algorithms in real-time.
Specialized software ties all components together. It provides the user interface for control, analysis, and decision-making, transforming raw pixel data into actionable insights.
Finally, sensors and control units complete the system. They determine object position, trigger image acquisition at precise moments, and communicate results to other machinery.
| Component | Primary Function | Key Consideration |
|---|---|---|
| Lighting | Illuminates the target object | Type, angle, and intensity of light source |
| Lens | Focuses light onto the sensor | Focal length, field of view, and working distance |
| Vision Sensor / Camera | Captures and converts light into digital data | Sensor resolution, speed, and interface |
| Cabling & Interfaces | Transports image data | Protocol (e.g., Ethernet, USB), bandwidth, and length |
| Computing Platform | Processes image data and runs algorithms | Processing power, memory, and operating system |
| Software | Controls system and analyzes images | Features for image enhancement, analysis, and integration |
| Sensors & Control Units | Triggers acquisition and communicates results | I/O capabilities and integration with automation controls |
Deep Dive into Lighting and Illumination
Without proper illumination, even the most advanced vision technology cannot deliver reliable inspection results. We help clients understand that lighting configuration fundamentally determines image quality, as cameras capture reflected light from target objects.
Different techniques address various inspection challenges. Position-based approaches include front lighting for general illumination and back lighting for silhouette effects.
Lighting Techniques based on Position and Angle
Angle-based methods create distinct visual characteristics. Directed lighting uses narrow angles to emphasize texture through shadows.
Diffused illumination employs wide angles to minimize shadows. This reveals subtle surface features that might otherwise remain hidden.
Specialized techniques like axial diffuse and dome lighting provide even coverage across complex geometries. These ensure consistent image quality for accurate processing.
Spectrum and Color Based Lighting Options
Color spectrum choices impact contrast and detection capabilities. RGB lighting uses specific wavelengths for monochrome imaging applications requiring maximum feature contrast.
White light provides full spectrum coverage for color reproduction needs. Advanced spectrum techniques include UV lighting for fluorescence applications and material detection.
SWIR and NIR illumination penetrate surfaces and reduce glare. We guide organizations in selecting optimal light sources based on object properties and application requirements.
Camera, Lens, and Sensor Technologies
Image capture represents the critical first step in the machine vision workflow, requiring precise coordination between camera and lens technologies. We guide clients in selecting the optimal combination that delivers the clarity and detail needed for accurate automated inspection.
Understanding Image Sensors
At the heart of every camera lies the image sensor, which converts incoming light into electrical signals. These sensors utilize photodiode arrays that generate micro-voltages from electromagnetic energy, processed by Analogue-to-Digital Converters to create digital image data.
Modern sensors are categorized by multiple characteristics, including physical structure (CCD versus CMOS), pixel arrangement (area scan versus line scan), and shutter type (global versus rolling). Each configuration offers distinct advantages for specific machine vision applications, from high-speed inspection to precise measurement tasks.
Selecting Optimal Lenses for Focus and Clarity
The camera lens serves as the optical interface that determines image quality through precise light focusing. Critical specifications include focal length, which governs magnification, and aperture settings that control light intake through F-stop values.
Field of View and working distance calculations ensure the lens captures the appropriate area with optimal clarity. We help organizations match lens capabilities to sensor requirements, ensuring the image circle properly covers the sensor format for maximum resolution.
| Lens Type | Primary Characteristics | Ideal Applications | Key Advantages |
|---|---|---|---|
| Entocentric | Fixed focal length, standard perspective | General inspection tasks | Cost-effective, widely available |
| Macro | High magnification (.05x to 10x range) | Extreme close-up work | Detailed surface inspection |
| Telecentric | No imaging angle, perpendicular view | Precise dimensional measurement | Eliminates parallax error |
Cabling and Interface Peripherals for Seamless Data Transfer
The critical link between image capture and analysis lies in the robust infrastructure that transports visual data. We guide clients in selecting communication hardware that ensures flawless data transfer from cameras to computing platforms, a choice that directly impacts system speed and reliability.
Ethernet and USB Standards
Ethernet provides versatile connectivity for machine vision systems. Common twisted-pair standards like 1000BASE-T offer 1 Gbps speeds over 100 meters, while 10GBASE-T delivers 10 Gbps. For longer distances, fiber optic implementations can transmit data up to 400 Gbps over 80 kilometers.
Universal Serial Bus (USB) standards offer a balance of speed and convenience. Evolution from USB 2.0 (480 Mbps) to USB 4 (40 Gbps) provides cost-effective options. These interfaces also supply power to cameras, simplifying setup in applications with moderate cable runs.
Specialized Protocols like CoaXPress and Camera Link
For demanding industrial applications, specialized protocols deliver superior performance. CoaXPress (CXP) uses coaxial cable, with standards like CXP-12 supporting 12.5 Gbps over 40 meters. Its point-to-point nature ensures stable communication in electrically noisy environments.
Camera Link establishes a high-bandwidth parallel connection between cameras and frame grabbers. Configurations range from Base (2.04 Gbps) to HS (25 Gbps), providing the low-latency signal transmission essential for high-speed inspection tasks.
| Interface Standard | Maximum Speed | Maximum Distance | Primary Advantage |
|---|---|---|---|
| Gigabit Ethernet (1000BASE-T) | 1 Gbps | 100 m | Ubiquitous, cost-effective networking |
| USB 3.2 Gen 2 | 10 Gbps | 3 m | Integrated power delivery, simple connectivity |
| CoaXPress (CXP-6) | 6.25 Gbps | 60 m | Long-distance coaxial cable support, noise immunity |
| Camera Link Full | 5.44 Gbps | 10 m | Low-latency, deterministic real-time performance |
Essential interface peripherals complete the data pathway. Network Interface Cards (NICs) and switches manage Ethernet traffic, while frame grabbers are specialized hardware for capturing images from CoaXPress and Camera Link cameras, often providing onboard processing.
We emphasize that selecting the right combination requires evaluating bandwidth needs, cable length, and synchronization requirements. This ensures optimal performance for your specific machine vision applications.
Computing Platforms and Image Processing Software
After a camera captures an image, the heavy lifting of analysis and decision-making falls to specialized computing hardware and sophisticated software. These elements form the intelligent core that interprets visual information.
We guide clients in selecting the optimal combination for their specific needs. The right platform balances processing power, environmental durability, and integration requirements.
Hardware Platforms Comparison
Internal camera processors handle basic tasks, but complex analysis demands external computing power. Choices range from standard consumer PCs to rugged industrial systems.
Embedded platforms like NVIDIA Jetson offer compact power for mobile applications. For the most demanding tasks, cloud-based systems provide virtually limitless scalability.
| Platform Type | Ideal Environment | Key Advantage |
|---|---|---|
| Consumer PC | Clean office settings | Cost-effective flexibility with standard interfaces |
| Industrial PC | Harsh factory floors | Dust and shock resistance for reliable operation |
| Vision Controller | PLC-integrated systems | Built-in I/O for seamless control integration |
| Cloud System | AI-driven applications | Massive scalable resources for deep learning |
Overview of Vision Software Solutions
The software transforms raw pixel data into actionable results. It controls camera features, processes images, and communicates decisions.
User-friendly Camera Viewers simplify setup and basic analysis. Comprehensive software packages manage multi-camera systems with advanced features like 3D reconstruction.
For fully custom applications, Software Development Kits (SDKs) provide the tools for tailored solutions. They support popular programming languages for maximum flexibility.
Selecting the right computing infrastructure is crucial for performance. We help organizations navigate these choices to achieve their operational goals. Contact our experts to design your ideal solution.
Advanced Integration in Machine Vision Applications
Sophisticated integration bridges the gap between component specifications and actual manufacturing performance. We help organizations navigate the complex transition from individual hardware selection to complete operational solutions.
Industrial and Automation Use Cases
Pharmaceutical bottle inspection demonstrates advanced machine vision applications. Systems must detect minute defects at high speeds while handling varying bottle sizes.
Four synchronized cameras provide complete 360-degree coverage. Specialized lighting and variable-focus lenses adapt to different container dimensions.
This application processes 280 bottles per minute with zero tolerance for quality failures. Real-time analysis controls sorting mechanisms based on defect detection.
Integration Challenges and Best Practices
Common challenges include synchronizing multiple cameras and lighting systems. Environmental factors like vibration can disrupt precise timing requirements.
High-speed data transfer demands robust infrastructure between sensors and processors. Integration with existing control systems requires careful planning.
| Challenge Category | Specific Issues | Recommended Solutions |
|---|---|---|
| Hardware Synchronization | Camera timing misalignment, lighting coordination | Precise external triggering, dedicated timing controllers |
| Data Management | Bandwidth limitations, processing bottlenecks | High-speed interfaces, distributed computing architecture |
| Environmental Factors | Vibration, temperature fluctuations, dust | Ruggedized components, environmental enclosures |
| System Integration | PLC communication, legacy equipment compatibility | Standard protocols, custom interface development |
We recommend starting with clear application requirements and performance margins. Thorough testing under actual production conditions validates system reliability.
Successful integration requires deep understanding of both technical specifications and operational workflows. Contact our experts at https://opsiocloud.com/contact-us/ for tailored machine vision solutions.
Strategies for Optimizing Operational Efficiency
The true potential of industrial vision technology is unlocked through systematic optimization approaches that address workflow bottlenecks. We help organizations implement proven strategies that enhance both processing speed and decision accuracy.
Streamlining Image Analysis Workflows
Optimization begins with refining the image capture process. Proper lighting design and appropriate lens selection dramatically reduce downstream computational requirements.
High-quality input images need less correction, enabling faster analysis cycles. This approach improves system responsiveness in time-critical applications.
Intelligent algorithm selection minimizes processing time significantly. We recommend utilizing hardware acceleration and region-of-interest processing for complex computations.
Optimizing data transmission paths eliminates bandwidth constraints. Selecting appropriate communication protocols ensures reliable information flow between components.
Systematic performance monitoring identifies specific bottlenecks. Organizations establish baseline metrics and implement targeted improvements for measurable gains.
Achieving optimal efficiency requires holistic consideration of all hardware elements. Each component must support the application’s speed and accuracy requirements.
We encourage organizations to contact our experts at https://opsiocloud.com/contact-us/ for comprehensive system assessments. Our team identifies optimization opportunities that enhance operational efficiency while reducing total cost of ownership.
Conclusion
Achieving operational excellence through automated quality control begins with understanding how vision technology components work together. The seven essential elements—proper lighting, precision lenses, industrial cameras, reliable cabling, interface peripherals, computing platforms, and specialized software—form the foundation for successful machine vision applications.
True system power emerges when these components integrate seamlessly. Each element contributes to the flow of visual information, from initial light capture to final decision-making. We help organizations navigate the complex selection process, balancing performance requirements with practical implementation considerations.
As machine vision technology evolves with AI and cloud capabilities, partnering with experienced advisors becomes increasingly valuable. Our team provides comprehensive consultation and implementation support tailored to your specific needs.
Contact our experts at https://opsiocloud.com/contact-us/ to transform these components into complete solutions that deliver sustained competitive advantage and measurable operational improvements.
FAQ
What hardware is essential for a machine vision system to function?
Every system requires core hardware: an industrial camera with an image sensor, a precision lens, and controlled illumination. These components work together to capture a high-quality digital image. The camera and lens determine the field of view and resolution, while proper lighting ensures critical features are visible for analysis.
How does the choice of lighting impact the performance of a vision system?
Lighting is arguably the most critical component. It directly influences image quality and the success of the image processing algorithms. We select lighting techniques—such as backlighting or dome illumination—based on the object’s surface, material, and the specific features we need to inspect. Proper illumination minimizes shadows and glare, making defects or details easier for the software to detect.
What role does software play in a machine vision application?
The software is the “brain” of the operation. It processes the digital image from the camera to perform tasks like measurement, flaw detection, or code reading. Powerful vision software solutions, such as those from Cognex or Keyence, analyze the image data and output signals—like a pass/fail result—to a control system, enabling real-time decision-making without human intervention.
Why is data transfer speed important, and how is it achieved?
In high-speed automation, rapid data transfer is vital to maintain production line speed. We achieve this through robust communication interfaces like GigE Vision, USB3 Vision, or specialized protocols like CoaXPress. These standards ensure the high-speed image data from the sensor is transferred reliably to the processing computer for immediate analysis.
Can a single vision system handle multiple different inspections?
Absolutely. With advanced software and the right hardware integration, a single system can be programmed for multiple inspection points. This multi-tasking capability maximizes return on investment by consolidating functions like presence verification, dimensional gauging, and surface flaw detection into one unified application, streamlining the entire workflow.
