Core Condition Monitoring Techniques
Each technique targets a different family of failure modes, so most programs combine several methods to cover the full risk profile of their asset base.
Vibration Analysis

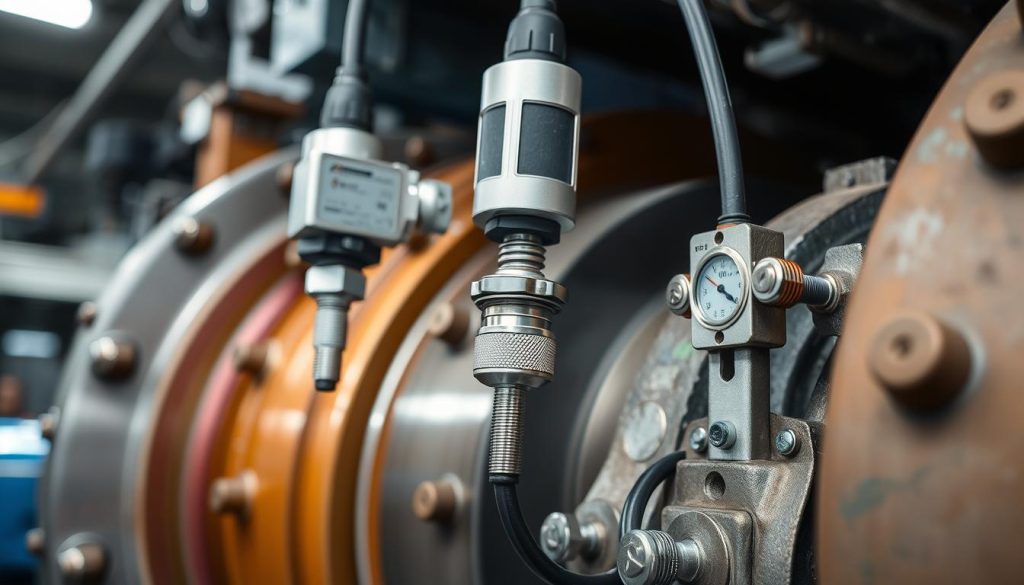

Vibration monitoring is the most widely deployed equipment health technique, particularly effective for rotating machinery such as pumps, motors, compressors, and turbines. Accelerometers mounted on bearing housings capture vibration waveforms that are then processed through fast Fourier transform (FFT) analysis. Specific frequency peaks map directly to fault types: imbalance, misalignment, bearing wear, looseness, or gear-mesh defects.
Modern wireless vibration sensors paired with cloud analytics platforms have dramatically reduced the cost of continuous monitoring, making the technique viable for mid-tier assets that previously relied on periodic route-based data collection. According to ISO 10816, vibration severity is classified into zones (A through D) that give maintenance teams a universally understood scale for escalation decisions.
Thermal Monitoring and Infrared Thermography
Abnormal temperature patterns are early indicators of friction, electrical resistance, insulation breakdown, or cooling-system degradation. Contact sensors (thermocouples, RTDs) provide continuous point measurements, while infrared cameras allow technicians to scan entire switchgear cabinets, motor frames, or process piping in seconds.
Key applications include:
- Loose or corroded electrical connections in MCC panels
- Overheated bearings in conveyors and fans
- Refractory degradation in kilns and furnaces
- Steam trap failures and insulation gaps in process piping
Oil and Lubricant Analysis
Lubricant condition reveals both the health of the oil itself and the health of the machine it protects. Standard tests measure viscosity, total acid number, water content, particle count, and wear-metal concentrations (iron, copper, chromium). Trending these parameters over successive samples exposes gradual component wear long before vibration levels spike.
While traditional oil analysis requires lab turnaround times of 3–5 days, inline sensors now provide real-time viscosity and moisture readings that trigger immediate alerts when thresholds are crossed.
Ultrasonic and Acoustic Emission Monitoring
High-frequency sound emissions (typically 20–100 kHz) detect compressed-air leaks, valve leakage, bearing defects, and partial discharge in electrical systems. Ultrasonic testing is particularly cost-effective for leak detection programs; a single compressed-air audit often identifies enough leaks to pay for the monitoring equipment within months.
Motor Current Signature Analysis (MCSA)
MCSA examines the electrical current drawn by a motor to detect rotor bar cracks, eccentricity, and winding faults without requiring physical access to the machine. Because the current signal is captured at the motor control center, this non-invasive technique suits assets in hazardous or hard-to-reach locations. It complements vibration monitoring by catching electrical faults that do not produce strong mechanical signatures early on.
How to Implement a Condition Monitoring Program
A structured rollout prevents the common failure mode of installing sensors everywhere and drowning in data nobody acts on. The steps below follow the sequence that experienced reliability teams use.
Step 1 — Rank Assets by Criticality
Score each asset on four dimensions: production impact, safety consequence, repair cost, and redundancy. Focus initial monitoring on the top-tier assets where unplanned failure carries the highest total cost. A simple 1–5 risk matrix is sufficient for most sites.
Step 2 — Map Failure Modes to Techniques
For each critical asset, list the dominant failure modes (e.g., bearing wear, seal degradation, winding insulation breakdown) and match them to the monitoring technique that provides the earliest detectable symptom. This step prevents the expensive mistake of monitoring the wrong parameter.
Step 3 — Establish Baselines and Alert Thresholds
Collect data under known-good operating conditions to define normal ranges. Set two-tier alert levels: a warning threshold that triggers increased monitoring frequency, and an alarm threshold that triggers a maintenance work order. Standards such as ISO 10816 (vibration) and ISO 4406 (oil cleanliness) provide starting benchmarks that can be refined with site-specific experience.
Step 4 — Connect to Maintenance Workflows
Condition data must flow into your CMMS or predictive maintenance platform so that alerts automatically generate work orders with diagnostic context. Without this integration, sensor data sits in a dashboard that nobody checks consistently.
Step 5 — Train the Team and Iterate
Technicians need to understand what the data means and trust the system enough to act on early warnings rather than wait for obvious symptoms. Run quarterly reviews to refine thresholds (reducing false alarms), expand coverage to the next tier of assets, and document saves where monitoring prevented an unplanned event.
Cloud Platforms and IoT in Condition Monitoring
Cloud-based analytics and low-cost IIoT sensors have removed the two biggest barriers to equipment monitoring adoption: upfront hardware cost and the need for on-site vibration analysts.
A modern cloud-enabled monitoring stack typically includes:

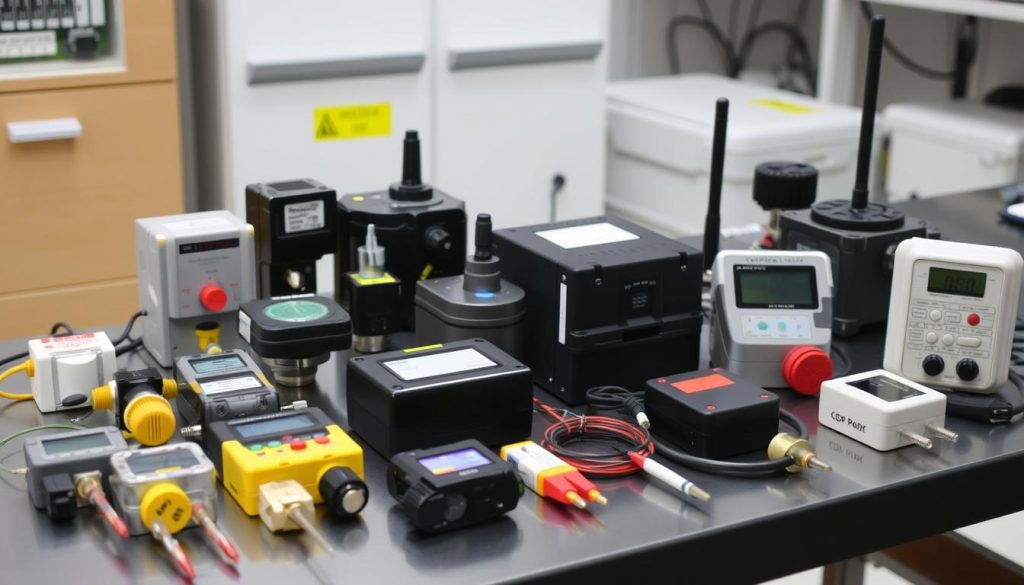

- Wireless vibration and temperature sensors that transmit via Bluetooth, Wi-Fi, or LoRaWAN to an edge gateway
- Edge computing nodes that perform initial signal processing and reduce data transmission volume
- Cloud analytics platforms (often hosted on AWS, Azure, or GCP) that run machine-learning anomaly detection across entire equipment fleets
- API integrations with CMMS, ERP, and SLA monitoring systems for automated work-order generation
This architecture lets a single reliability engineer oversee hundreds of assets across multiple sites from a centralized dashboard, a capability that was previously available only to organizations with large in-house vibration-analysis teams. For companies already running workloads in the cloud, extending that infrastructure to handle operational-technology data from equipment health sensors is a natural next step in cloud infrastructure modernization.
Industry Applications
Asset health monitoring delivers measurable value across any sector that depends on physical assets, though the specific techniques and ROI drivers vary by industry.
Manufacturing
CNC machines, presses, conveyors, and robotic cells are prime candidates for vibration and thermal monitoring. The primary ROI driver is avoiding the cascading production losses that occur when a single bottleneck machine goes down unexpectedly.
Energy and Utilities
Turbines, generators, transformers, and wind-turbine drivetrains demand continuous monitoring because failures threaten grid stability and carry six- to seven-figure repair costs. Utilities frequently combine vibration analysis, oil analysis, and partial-discharge monitoring for comprehensive coverage.
Mining and Heavy Industry
Crushers, ball mills, haul-truck drivetrains, and dewatering pumps operate in extreme dust, vibration, and temperature conditions. Wireless IIoT sensors have expanded monitoring to previously inaccessible underground assets.
Facilities and Commercial Buildings
HVAC chillers, air-handling units, elevators, and backup generators benefit from ongoing health monitoring that reduces emergency callouts and extends equipment life, lowering total cost of ownership for building operators.
Business Value and ROI
The financial case for equipment health monitoring rests on three pillars: lower maintenance spend, higher asset availability, and reduced safety risk.
Typical outcomes reported by organizations with mature programs include:
- 25–30% reduction in maintenance costs from eliminating unnecessary preventive tasks and catching faults before secondary damage occurs (source: U.S. Department of Energy O&M Best Practices Guide)
- 70–75% fewer breakdowns on monitored assets, translating directly into higher production uptime
- 20–40% longer component life because parts are replaced based on actual condition rather than conservative calendar intervals
- Improved safety posture from reduced emergency maintenance in confined spaces, at height, or near energized systems
For capital-intensive industries, the payback period on a monitoring program investment is typically 6–18 months when the program starts with the highest-criticality assets.
Frequently Asked Questions
What is the difference between condition monitoring and predictive maintenance?
Condition monitoring is the data-collection layer: it tells you the current health state of an asset. Predictive maintenance builds on that data by applying statistical or machine-learning models to forecast when a failure will occur and recommend the optimal intervention window. In short, the monitoring layer is the foundation; predictive maintenance is the strategy built on top of it.
Which assets should be monitored first?
Start with assets where unplanned failure causes the greatest total impact: production bottleneck machines, safety-critical systems, and equipment with long lead times for replacement parts. A criticality ranking matrix (impact x probability) is the standard prioritization tool.
How much does a monitoring system cost?
Costs vary widely. A basic wireless vibration sensor costs USD 200–500 per point; cloud analytics subscriptions range from USD 5,000–25,000 per year depending on asset count. The total investment depends on the number of monitored points, connectivity requirements, and the level of analytics sophistication. Pilot programs covering 10–20 critical assets are a common, lower-risk starting point.
Can this approach work with legacy equipment?
Yes. Retrofit wireless sensors can be mounted on virtually any rotating or electrical asset regardless of age. The equipment itself does not need a digital interface; the sensors measure external physical parameters (vibration, temperature, ultrasonic emissions) independently of the machine’s control system.
What role does cloud infrastructure play?
Cloud platforms provide the scalable compute and storage needed to run machine-learning models across large sensor datasets. They also enable centralized dashboards for multi-site monitoring and integrate with enterprise systems (CMMS, ERP) via standard APIs. Organizations already investing in cloud infrastructure optimization can extend that foundation to operational technology data.
Next Steps for Your Organization
Continuous equipment monitoring is no longer a capability reserved for large industrial conglomerates with dedicated reliability engineering departments. Cloud-connected IIoT sensors, subscription analytics platforms, and standardized integration protocols have made it practical for mid-market manufacturers, facility operators, and service providers to launch programs that deliver measurable ROI within the first year.
The most effective path forward is to start small and prove value fast: identify your top 10 critical assets, instrument them with the monitoring technique matched to their dominant failure mode, connect the data to your maintenance workflow, and track every prevented failure as a documented save. That evidence base funds the next phase of expansion.
